Features and application range
l weldability, welding firm, easy to install.
l closed magnetic circuit, less leakage, resistance to high current.
l high saturation current, low resistance.
l products are green products, with SGS, UL, ISO9001 and other reports.
l Mainly used in televisions, fax machines, copiers, automatic
Devices, laptops and more.

Suggestions for use and storage
l Inductance welding, the ambient temperature is between 230 ℃ ~ 260 ℃, the time ≦ 6 seconds.
l manual solder, tin furnace temperature between 350 ℃ ~ 420 ℃, time ≦ 3 seconds.
l working temperature: -25 ℃, +80 ℃.
l Storage environment: Store at room temperature and away from volatile chemical gases or liquids.
l Storage time of more than 12 months or more end of the product should be tested for anti-oxidation treatment before use.

Product specifications and appearance of the model

Note: The packaging can be customized according to customer requirements, otherwise according to conventional packaging. These are the common specifications, beyond the above range can also be produced, the tolerance range of inductance value can choose.

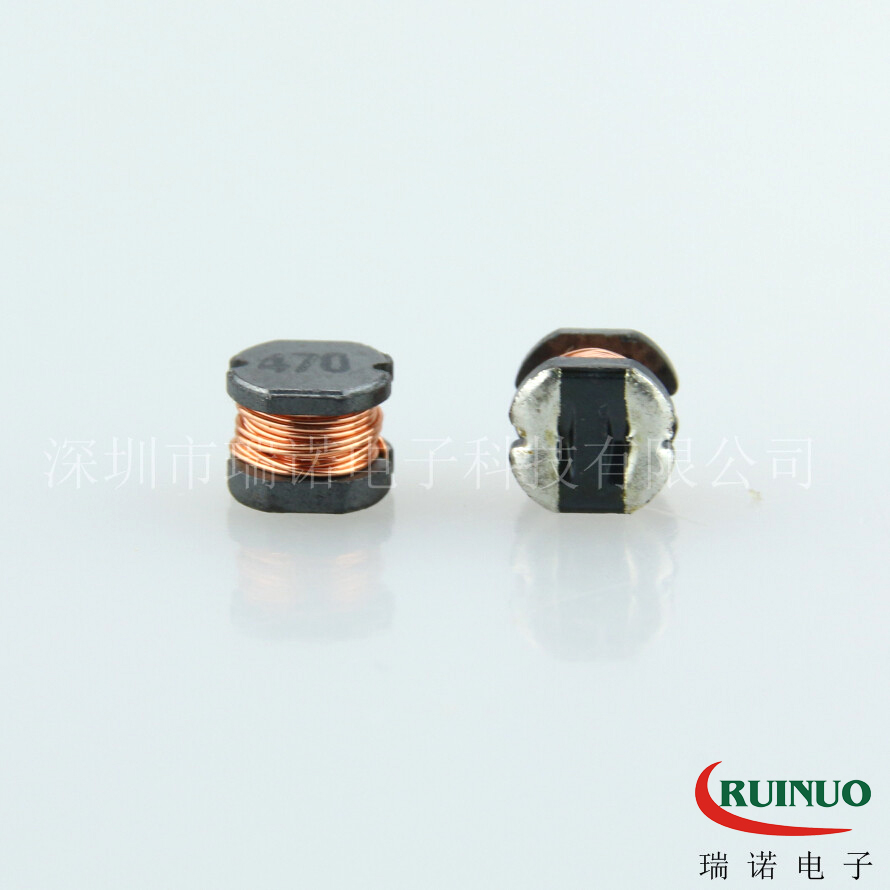

CD Chip Inductor Number Description:
CD 32 - IND10 TL
(1) (2) (3) (4)
(1). Type: CD
(2) Size (Size): finished to size (According to size) (32)
(3) Inductance: "INDXX" means 10uH (Example: "IND10" for inductance 10uH)
(4) Tolerance: "TW: ± 20%," T ": ± 10%," F ": ± 5% (TL)
